Monitor Bracket Kit for Large Frames

Bring videos, presentations and product demonstrations into your illuminated display. This custom monitor bracket kit attaches to the top horizontal extrusion of larger Mobile Light Box frames, allowing you to integrate a screen into your backwall.

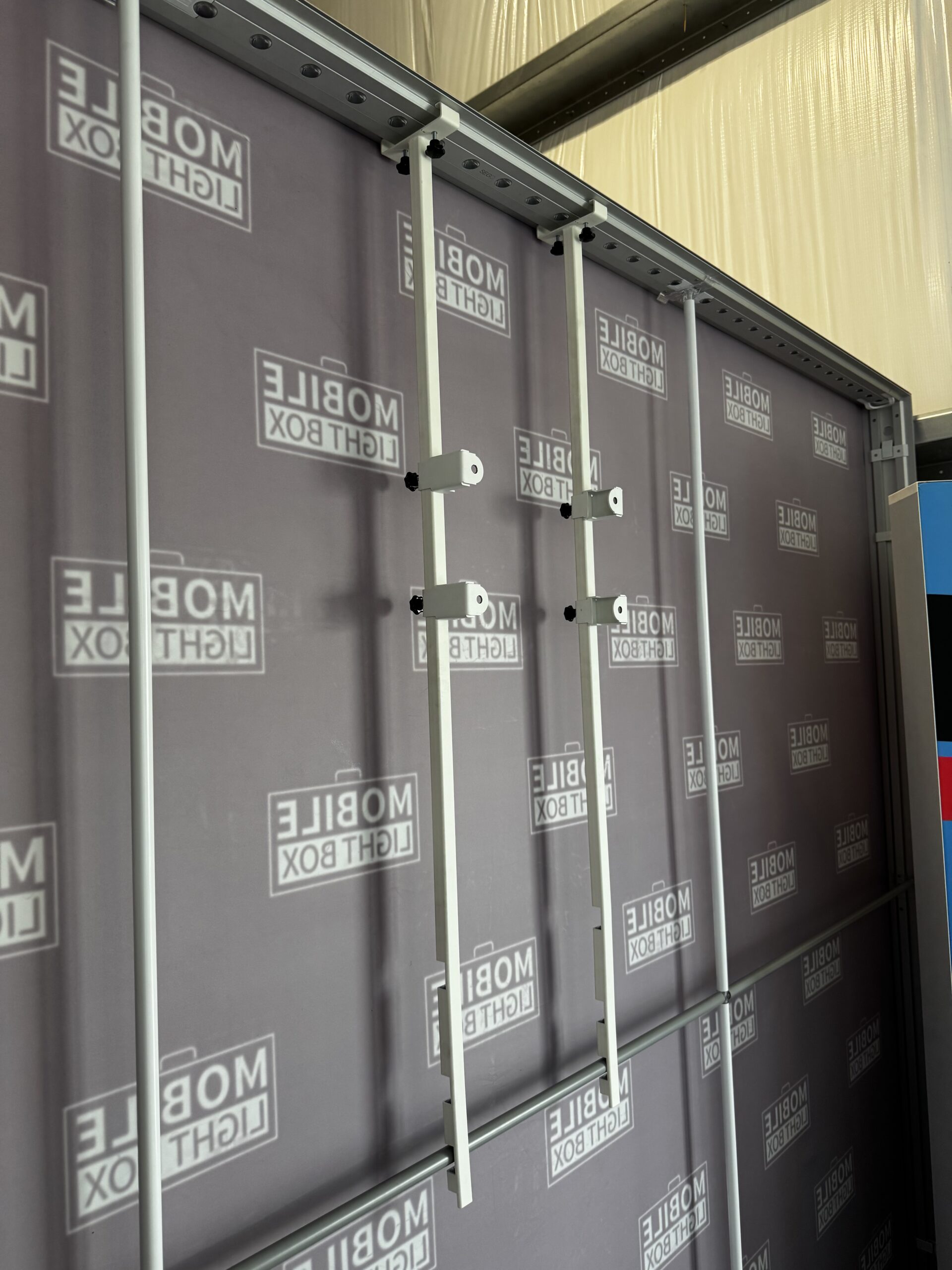

The mounting system uses two support bars and four adjustable mounting brackets. The support bars slide along the top extrusion, allowing you to position the screen across the frame’s width to suit your graphic layout.

Compatible frames

Suitable for all available heights of these Mobile Light Box frame models:

• MLB200: 78.74-inch-wide frames (200 cm).
• MLB300: 118.11-inch-wide frames (300 cm).
• MLB600: 236.22-inch-wide frames (600 cm).

TV weight and mounting compatibility

The maximum supported TV or monitor weight is 40 lb (approximately 18 kg). Check the screen’s weight before installation.

The mounting brackets can be positioned independently along the support bars rather than relying on a single fixed VESA hole pattern. Check that the brackets align with your TV’s mounting holes and that the supplied M6 or M8 screws match its required thread size and screw length.

Installation and graphic preparation

The custom mounting system clamps onto the frame’s top horizontal extrusion. Position the sliding support bars and mounting brackets to suit the screen and your preferred placement.

Small slits must be made in the fabric graphic to accommodate the mounting hardware. Plan the screen position before cutting so the openings align with the installation and remain concealed behind the TV.

What’s included

• Two support bars.
• Four mounting brackets.
• A set of M6 and M8 screws.
