Create a bridge or arch display

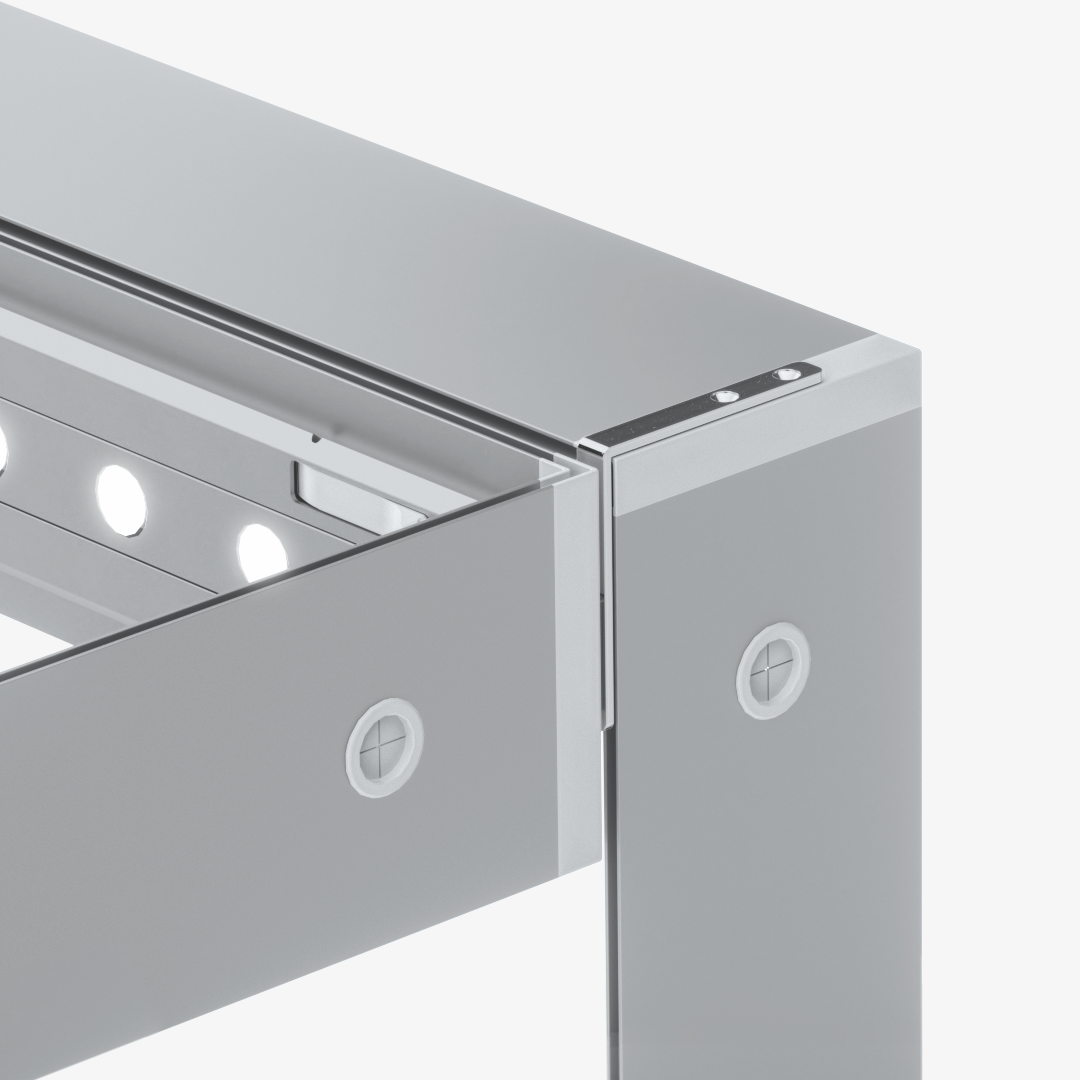

The Bridge Connector joins an overhead Mobile Light Box frame to an upright pillar frame. It allows compatible frames to form a bridge or arch configuration for your display layout.
The connection uses the frames’ existing foot ports. The connector’s longer locking end fits into the suspended frame, while the shorter pilot end fits into the pillar frame.
Compatible frames and configurations
- Frame series: Designed for non-battery-powered Mobile Light Box frames with SKUs beginning with MLB120.
- Matching widths: The pillar frames and suspended frame must have the same width so their foot connection ports align.
- Matching pillar heights: Both upright pillar frames must be the same height.
- Suspended frame height: The suspended frame can have a different model height from the pillar frames.
This connector is not intended for a standard battery-powered frame setup. Contact us before ordering if your proposed configuration includes battery-powered frames.

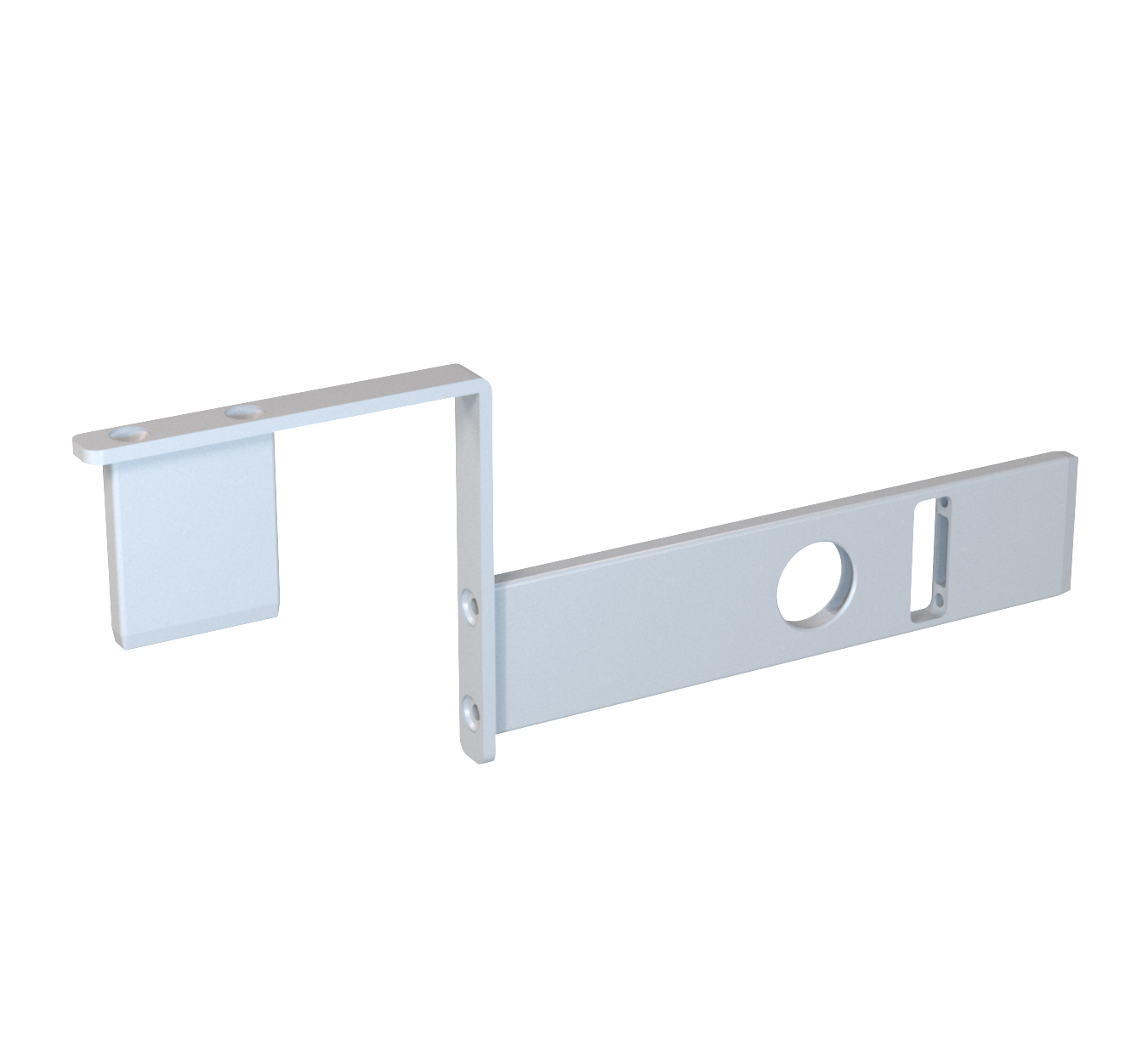

Connector orientation
The two ends have different functions and must be positioned correctly:

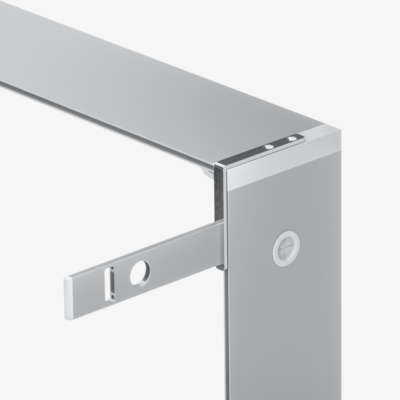

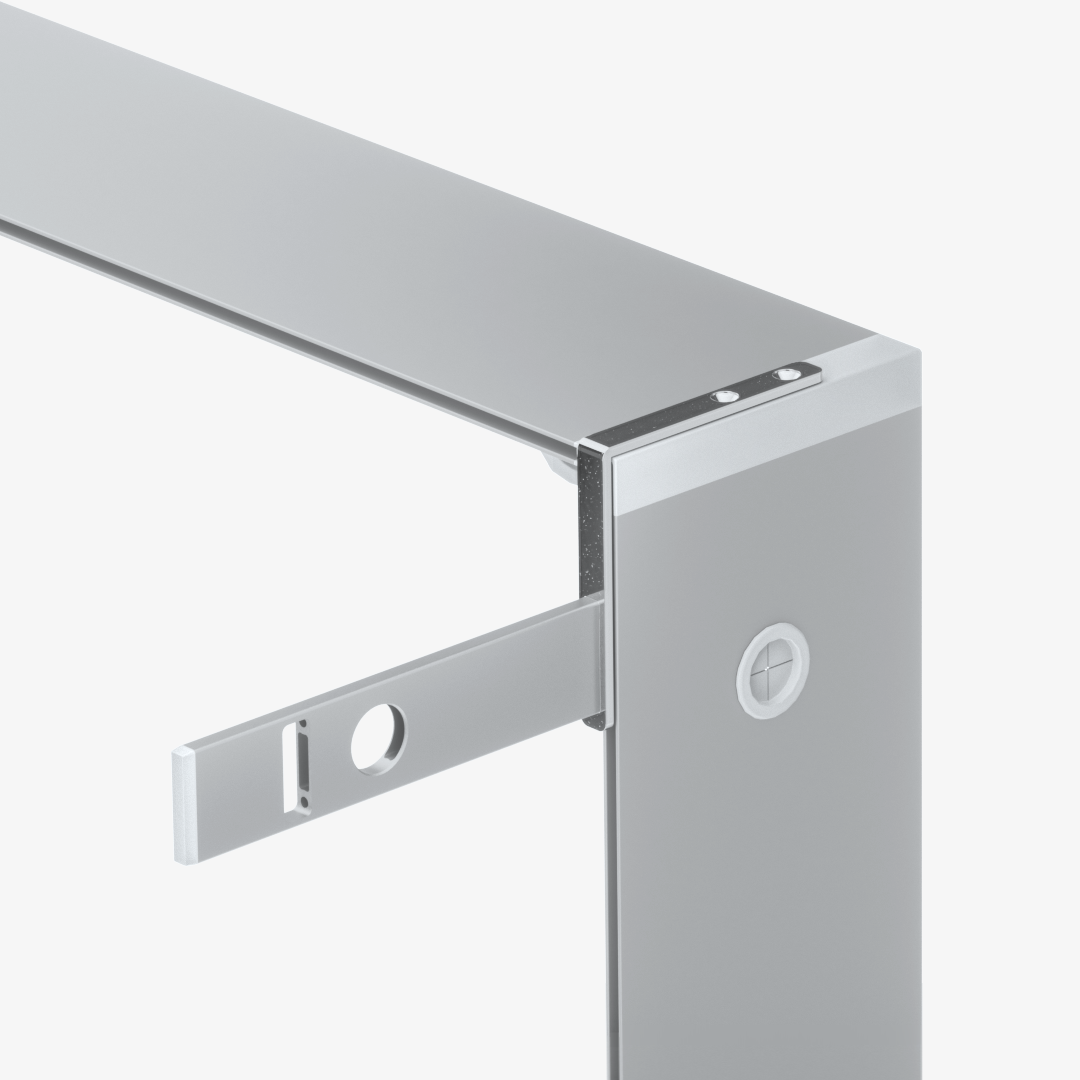

- Longer locking end: Insert into the foot connection port of the suspended frame.
- Shorter pilot end: Insert into the foot connection port of the upright pillar frame.
Check the orientation before assembling the connection. The longer locking end must go into the suspended frame, not the pillar frame.
Plan your connector combination
Bridge Connectors are sold individually and can be combined with Bridge Connector Halfway components to suit your configuration. For help selecting the required connectors and support components, contact us with your frame models and proposed layout.
What’s included
- One Bridge Connector.
This listing is for an individual connector, not a complete bridge or arch kit. Frames and other connector types are sold separately.
