Create an overhead display with a front-facing pillar

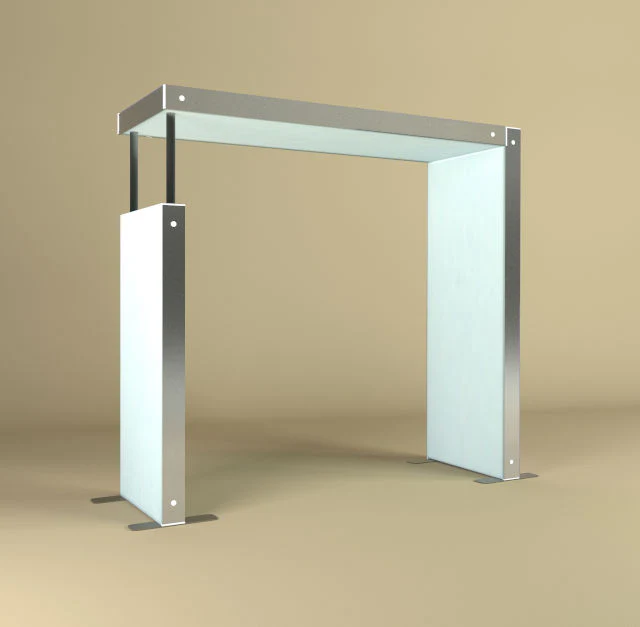

The High-Low Bridge Connector 240 provides a different connection method from the standard Bridge Connector. It mounts inside the suspended frame, with two poles extending downward to connect to the top of an MLB100×200 front pillar frame.
This arrangement allows you to create an arch or roof-like overhead display supported by a taller rear frame and a shorter front pillar.
Required frame configuration
- Rear upright or backwall: Must be x240 cm tall, approximately 7.87 ft.
- Front pillar: Requires an MLB100×200 frame.
- Suspended frame: Its length can vary to suit the intended arch span.
The “240” designation refers to the height of the rear upright or backwall. It does not mean that the suspended frame must have a 240 cm span.
How the connection works
The internal rigging fits inside the suspended frame. Two poles project from its underside and connect onto the top of the MLB100×200 front pillar.
This product provides the front connection for the overhead frame. A separate connector arrangement is needed at the rear of the arch.
Rear connectors required separately
Choose the appropriate rear connection for your frame layout:
- Bridge Connector: For a matching-width connection through the frames’ foot ports.
- Bridge Connector Halfway: For a connection that rests across the top of the rear frame, allowing mixed-width configurations.
These connectors are sold separately. Contact us with your frame models and proposed layout if you need help selecting the rear connection and any additional support components.
What’s included
- Internal rigging for the High-Low Bridge Connector 240.
This listing is not a complete arch kit. Frames and rear bridge connectors must be ordered separately.
