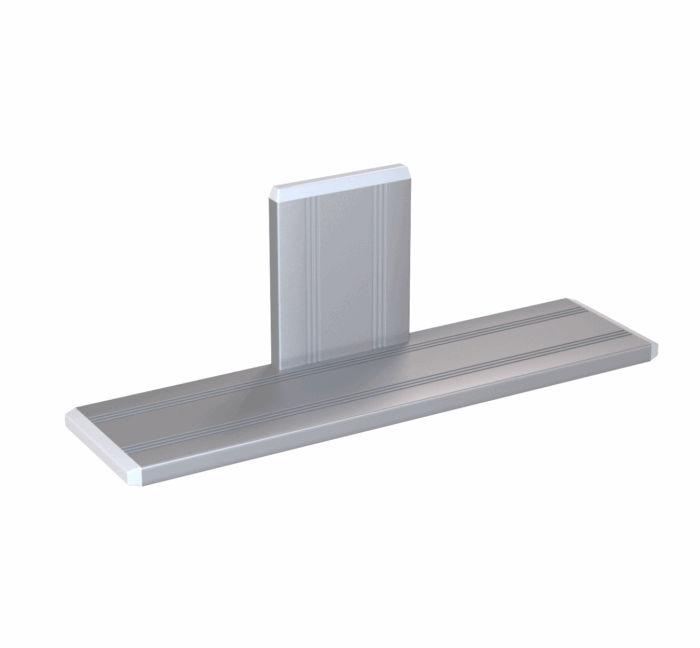

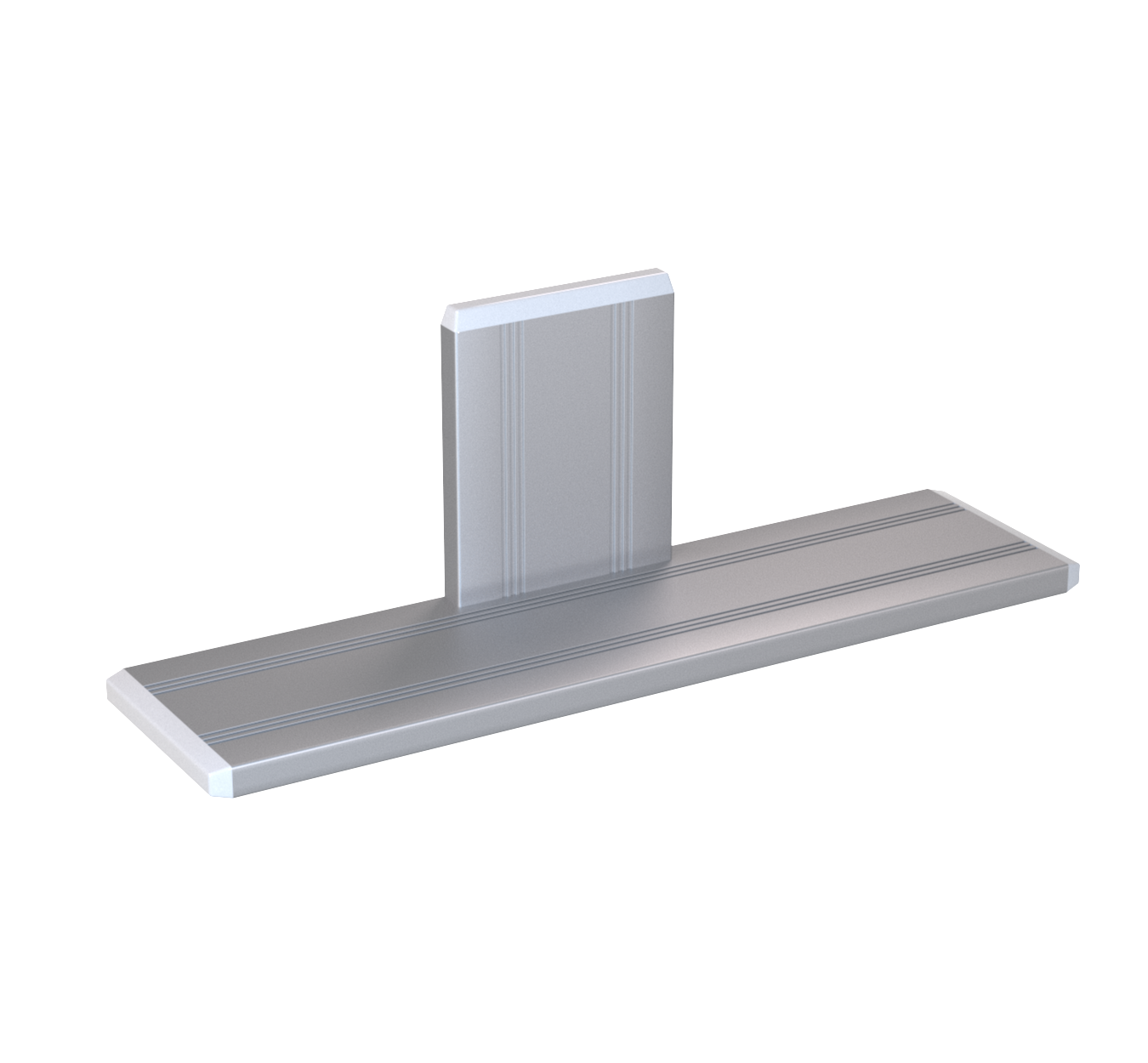

Mini Foot

Use the Mini Foot where standard feet would interfere with one another in a connected corner layout. Its compact design stays within the frame’s depth while maintaining the same frame height as sections fitted with standard feet.

The Mini Foot inserts directly into the frame’s foot port without additional mounting hardware. It is sold individually, allowing you to order the quantity needed for your layout.

Compatible frames

• MLB120-series frames: Compatible with all non-battery Mobile Light Box frames carrying an MLB120 SKU.

Battery-powered frames are not compatible. Check your frame’s SKU before ordering if you are unsure which version you have.

Corner clearance and frame alignment

The Mini Foot replaces a projecting foot at a connection where clearance is needed. It keeps the frame level with adjoining sections without extending beyond the frame’s depth.

Important stability guidance

The Mini Foot provides height alignment, not support against tipping or shifting. It is not a substitute for the support feet required to stabilize your display.

Retain standard or long support feet elsewhere in the connected layout as appropriate. Contact Mobile Light Box if you need help planning foot placement for your configuration.

What’s included

• One aluminum Mini Foot. No additional mounting hardware is required.
