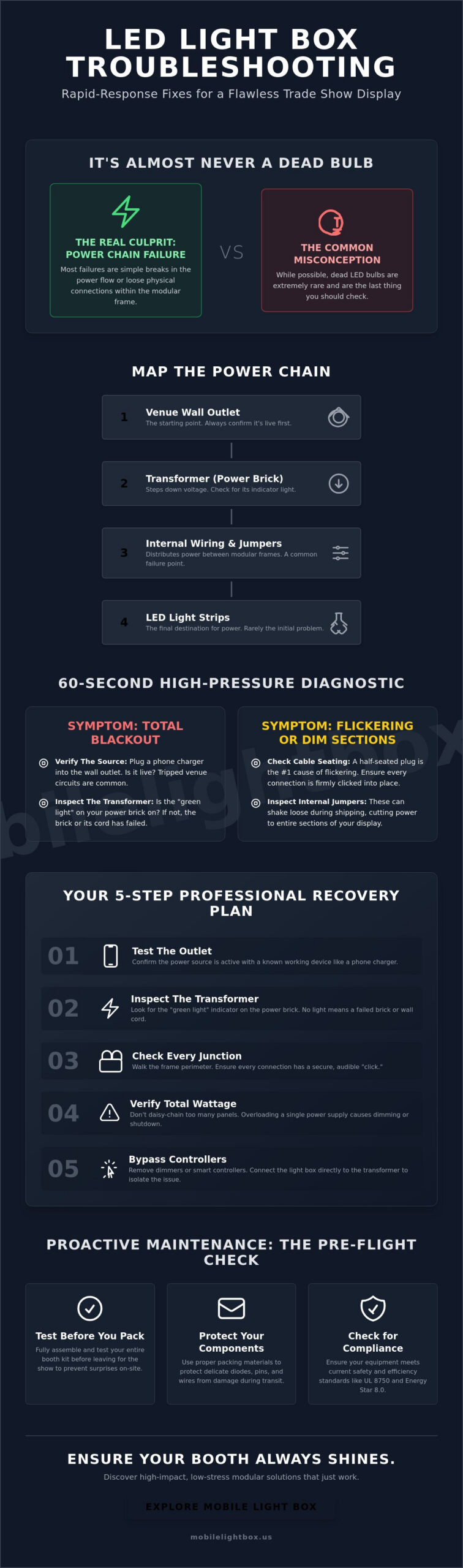

Troubleshooting LED Light Box Displays: The Professional Setup Guide

Your LED light box failure is almost never a dead bulb issue. Instead, it is nearly always a break in the power chain or a simple physical connection error within the modular frame. Troubleshooting LED light box displays quickly is the difference between a high-impact presence and a dark, unprofessional booth. We understand the stress of a flickering section when you are minutes away from the show floor opening. You need a setup that is both high-impact and low-stress.

This guide provides the rapid-response fixes required to resolve modular power confusion and secure dim panels instantly. You will learn how to identify faulty drivers and manage power bricks to keep your booth vibrant and elevated. We focus on simplicity and speed to ensure your hardware enhances your brand visibility without logistical delays. Our approach balances technical expertise with user-friendly guidance for a seamless experience.

We will walk through the technical essentials, including verifying that your equipment meets the UL 8750 safety standards updated on August 1, 2024. You will also learn how to maintain Energy Star Version 8.0 compliance to ensure your display remains efficient and reliable. This professional guide moves you from a technical problem to a modular solution that ensures your professional presence shines every time.

Diagnostic First: Identifying Common LED Light Box Failure Points

Effective troubleshooting LED light box displays begins with mapping the “Power Chain.” This is the specific sequence energy follows to illuminate your booth. It starts at the venue’s wall outlet, travels through the transformer, moves into the internal wiring, and finally reaches the Light-Emitting Diode (LED). If one link fails, the entire visual impact is lost. Most issues aren’t caused by faulty hardware but by simple interruptions in this chain.

We categorize failures into two groups: total blackouts and partial malfunctions. A total blackout suggests a break at the start of the chain, like a dead outlet or a failed power brick. Partial failures, such as flickering or dimming, usually point to loose connections or damaged internal components. Setup day is the most critical time for these issues. Rushed assembly and rough shipping handling put immense stress on modular components. Use our “Quick-Check” methodology to find the fix: Power, Connection, Hardware.

Total Power Failure vs. Component Malfunction

Distinguishing between an external power issue and an internal malfunction saves valuable time. Start with the transformer. This external power brick steps down high venue voltage to safe levels. It’s a critical safety component. Modern drivers should meet UL 8750 standards, specifically the revisions from August 1, 2024, to ensure reliability. If the brick’s indicator light is off, the problem is the outlet or the brick itself. Venue circuits often trip when neighboring booths overload the grid. If the brick is active but the display is dark, the break is likely inside the frame or within the modular mobile light boxes internal harness.

The ‘High-Pressure’ Setup Diagnostic

When the show floor opens in minutes, you need a 60-second diagnostic. Follow this rapid checklist to identify the culprit before the first attendee arrives. Physical damage from shipping is a common reality for high-frequency exhibitors. Inspect your tradeshow booth kits for crushed pins or severed wires that may have occurred during transit.

• Verify the Source: Plug a phone charger into the outlet to confirm it’s live.
• Inspect the Jumper: Modular systems use internal jumpers to bridge power between panels. These often shake loose during shipping.
• Check the Seating: Ensure all power cables are clicked firmly into their ports. A half-seated plug is the primary cause of flickering.
• Look for Shadows: Dark spots often mean a single LED strip has disconnected from the main harness.

This systematic approach keeps your presence high-impact and low-stress. By focusing on the most likely failure points first, you eliminate guesswork and restore your brand’s visibility quickly. It’s about maintaining an organized, professional, and results-oriented workflow even under pressure.

Solving Power and Connectivity Issues: From Blackouts to Flickering

When your display goes dark, stay calm and follow a systematic recovery plan. Effective troubleshooting LED light box issues requires isolating the power source from the hardware. Don’t waste time guessing. Start with these five professional steps to restore your booth’s visibility.

• Step 1: Test the outlet. Plug in a known working device, such as a phone charger, to verify the venue is providing active power.
• Step 2: Inspect the transformer. Look for the “green light” indicator on your power brick. If the light is off, the brick or the wall cord has failed.
• Step 3: Check every junction. Walk the perimeter of your modular frame. Ensure every internal connection has a secure, audible “click.”
• Step 4: Verify total wattage. Ensure you haven’t daisy-chained too many panels. Overloading a single power supply leads to dimming or immediate thermal shutdown.
• Step 5: Bypass controllers. Remove any external dimmers or smart controllers. Connect the light box directly to the transformer to isolate the light source.

Troubleshooting the Power Supply and Transformers

Using the wrong power cord is a common mistake that leads to heat buildup. Generic cords often lack the gauge required to handle the amperage of high-output displays. This causes significant voltage drop and dimming. Power bricks often fail in transit due to internal component rattling or extreme temperature shifts in cargo holds. Always carry OEM spare parts to ensure electrical compatibility and safety. Using non-certified transformers can void your warranty and risk damaging the internal LED strips.

Fixing Flickering and Intermittent Light

Flickering is rarely a sign of a dying bulb. It usually indicates loose pins in the modular frame or a poor SEG fabric fit that is putting pressure on internal wiring. Understanding how LEDs are different from traditional incandescent bulbs is helpful here. LEDs are highly sensitive to “dirty” power and minor connection gaps. Dust and debris at connection points can also interrupt the current. Clean these ports using compressed air or a dry, lint-free cloth to ensure a perfect contact. In large, daisy-chained kits, “voltage drop” can cause the final panels to flicker or appear dimmer. If you notice this, split the power load across two separate transformers. If you need assistance with complex configurations, contact our support team for expert guidance.

The Anatomy of a Modular Light Box: Frame and Internal Wiring

A professional display frame serves as more than just a skeleton for your graphics. In high-end modular mobile light boxes, the aluminum extrusion acts as a protected conduit for the entire electrical system. Power distributes through internal wiring harnesses that run hidden within the frame channels, keeping the aesthetic clean and the components safe. Understanding this internal architecture is vital when troubleshooting LED light box issues that persist after you’ve verified the external power supply.

Multi-panel setups rely on “jumpers” to bridge the electrical gap between individual sections. These short bridge cables or integrated pin connectors ensure that energy flows seamlessly from the primary panel to the rest of the kit. Precision frame alignment is critical for continuity in tool-free systems. If the frames aren’t perfectly flush, the internal pins won’t engage. This leads to dead sections or intermittent flickering. Always check for a pinched wire during assembly. This is the primary cause of electrical shorts in portable displays. A wire caught between two frame segments can sever the insulation, causing a localized blackout or a complete system shutdown.

Modular Frame Connections and Continuity

If a specific panel remains dark, focus on the junctions. Visual signs of “arcing,” such as small black carbon marks or burnt pins, indicate a poor connection that has caused a spark. This usually happens when frames are forced together while the power is active. Always turn off the power before re-seating frames. Ensure the electrical pins are fully engaged and centered. If you have a multimeter, check for continuity across the frame segments to confirm that the internal harness hasn’t sustained a break.

Internal LED Strip Maintenance

When one individual LED strip is dark while others in the same panel are bright, the issue is likely the “lead wire.” This small connector links the frame’s main harness to the first LED strip in the series. Check for loose plugs or pins that have backed out of their plastic housings. You can safely swap a failing LED strip with a known working one from another section to test if the strip itself has failed. This process helps you determine if you need to order spare parts or if the problem lies deeper in the frame’s wiring harness. Maintaining this organized, results-oriented approach ensures your booth stays vibrant and your setup remains low-stress.

Visual Quality Issues: SEG Fabric and Light Leaks

High-impact visibility depends on more than just active power. Even a perfectly functional SEG fabric light box can appear flawed if the graphic isn’t seated correctly. Visual troubleshooting LED light box setups requires a keen eye for detail. Shadows or “hot spots” are usually the result of physical obstructions rather than electrical failure. If you see bright spots, internal wires are likely resting directly against the LED diodes. This creates a localized glow that breaks the uniform wash of light. Conversely, dark shadows appear when internal cables or frame components block the light path before it hits the fabric.

Light leaks at the corners are another common setup issue. These occur when the silicone beading of the graphic isn’t pressed deep enough into the modular frame channel. This ruins the premium “frameless” aesthetic and distracts from your brand messaging. Additionally, a dirty or creased banner can mimic a lighting failure. Smudges on the inside of the fabric often look like dead LEDs from the front. Always inspect the interior surface before final assembly to ensure your presentation remains flawless and professional.

Correcting Shadows and Uneven Illumination

Ensure all internal wires are tucked securely behind the frame flange. This keeps the light path clear and prevents “wire shadows.” The backer fabric, or “reflector,” must be clean and free of scuffs to maintain the “white-out” effect. This reflective layer is essential for bouncing light forward through the graphic. If you notice dark bands, your LED strips may have shifted during transit. Gently slide the strips back into their designated tracks to restore equal spacing and uniform brightness across the entire panel.

SEG Fabric Tension and Alignment

Fix “puckering” by re-seating the graphic immediately. Puckered fabric causes uneven light diffraction, making parts of your image look distorted or dim. Use the “corners-first” technique. Insert the four corners of the silicone beading first, then move to the center of each side. This ensures even tension across the entire surface. Be aware of your environment. High ambient light in a tradeshow hall can wash out your display’s perceived brightness. If your graphics still don’t sit right after these steps, talk to our display experts for a professional assessment.

Proactive Maintenance: Preventing Future Display Failures

The most effective strategy for troubleshooting LED light box displays is to eliminate variables before you arrive at the venue. Conduct a “Pre-Flight” check at your warehouse at least 48 hours before shipping. Assemble your full tradeshow booth kits to verify that every panel, jumper, and transformer is functioning at peak brightness. This proactive step prevents the stress of discovering a pinched wire or a dead power brick during the final minutes of setup. It ensures your professional presence is both high-impact and low-stress from the moment you arrive.

Build a dedicated “Show Day Emergency Kit” to handle unexpected logistical hurdles. This kit should include extra power cables, internal jumpers, and silicone beading tools. Store your electronic displays in climate-controlled environments when they aren’t in use. Extreme humidity or temperature fluctuations can degrade the solder joints on LED strips and cause the adhesive on internal components to fail. Proper storage ensures your hardware remains a reliable asset for years of high-impact events. Maintaining this level of organization is what separates a prepared professional from a stressed exhibitor.

Packing and Shipping Best Practices

Original shipping cases provide the best defense against transit damage. These cases are engineered with custom foam inserts that protect delicate pins and prevent LED diodes from being crushed. Secure all loose internal cables with hook-and-loop ties so they don’t snag or tear during disassembly. In large booths with multiple units, label each power brick to match its specific light box. This organization speeds up the assembly process. It also ensures you don’t accidentally overload a transformer with the wrong wattage load, which we identified earlier as a primary cause of flickering.

When to Replace vs. When to Repair

High-quality LEDs are durable, but they do have a finite lifespan. Watch for color shifting. If your white light begins to take on a yellow or blue tint, the phosphor coating on the diodes is degrading. This is a clear sign that an LED strip has reached its end of life. Investing in spare parts is often more cost-effective than replacing entire frames or renting temporary units. For complex electrical repairs or internal harness failures, reach out to our professional support team. We provide the technical expertise to restore your display’s vibrancy and ensure your brand’s professional image remains elevated and visible.

Secure Your High-Impact Presence

Mastering the power chain and understanding the internal anatomy of your display transforms a high-pressure setup into a seamless process. By implementing a systematic approach to troubleshooting LED light box issues, you ensure your brand remains vibrant and visible throughout every event. You now have the technical tools to isolate power failures, eliminate shadows through proper SEG seating, and protect your hardware with professional packing techniques. These proactive steps guarantee that your professional presence is both high-impact and low-stress.
